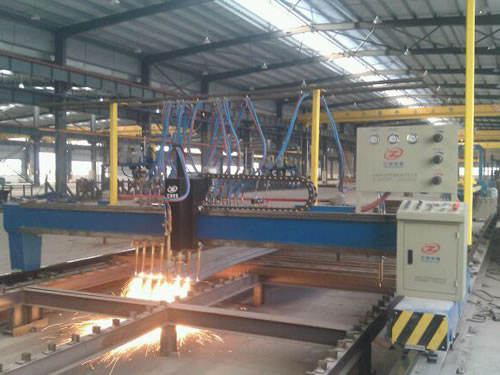

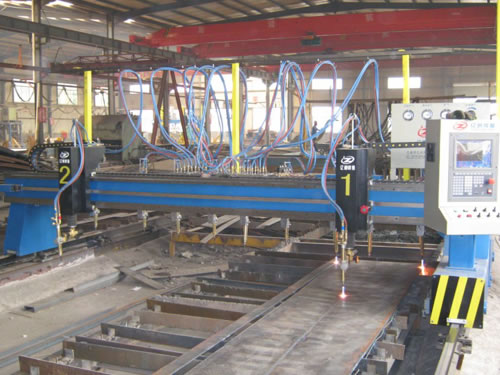

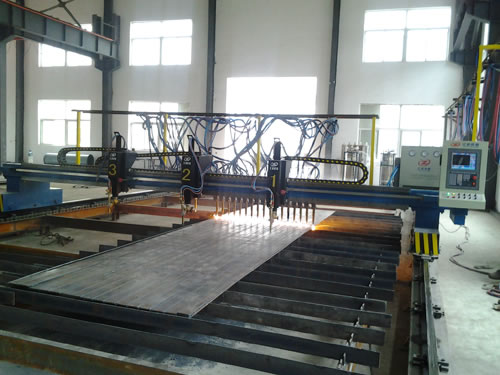

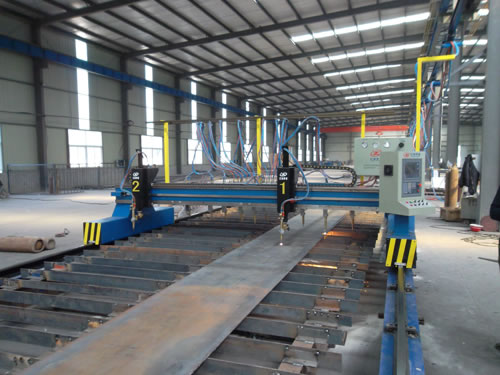

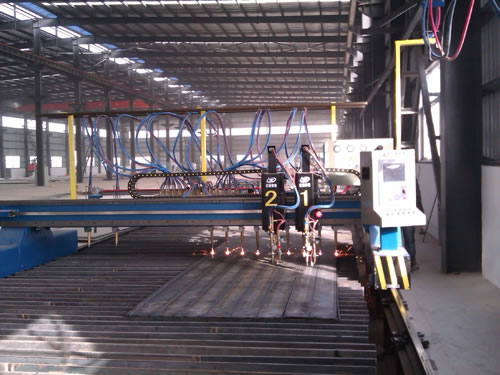

CNC Oxy-Fuel Flame Cutting Machine

Introduction
Our CNC oxy-fuel cutting machine works to cut metal materials with fuel gas or gasoline plus oxygen. Its minimum cutting width is 230 mm. The plate thickness ranges from 6 mm to 100mm. The cutting speed of our gas cutting machine is 0.05 to 6m per minute and the max. return speed turns to be 6000 mm/min. With this cutter, the roughness of cut surface is Ra12.5. Due to these, it has become the ideal cutting equipment.

Features
1. CNC oxy-fuel flame cutting machine is able to cut carbon steel of high thickness. And the cost is comparatively low.
2. With the adoption of imported pipes, the gas pipeline can be used for a long time.
3. Gas cutting machine utilizes PANASONIC precision servo drivet
4. It has a remote operation box, bringing convenience to operation and economizing operation staff.
5. CNC flame cutting machine is characteristic of high cutting precision (± 0.5/1000). The torch is on the same vertical line with the help of precision lead screw and roller liner guide.
6. It has a set of ordering instruction about busbar (oxygen, acetylene and propane gas).

Parameters of CNC Oxy-Fuel Flame Cutting Machine

Specification			YZCN-4000		YZCN-5000	YZCN-6000
Track Range (mm)			4000		5000	6000
Effective Cutting Width (mm)			3200		3700	4200
Min. Cutting Width (mm)		CNC	230		230	230
		Strip	80		80	80
Plate Thickness (mm)			6-100		6-100	6-100
Cutting Speed (m/min)		Frequency Control	0.05-2		0.05-2	0.05-2
		Servo Drive	0.05-6		0.05-6	0.05-6
Max. Return Speed (mm/min)		Frequency Control	2000		2000	2000
		Servo Drive	6000		6000	6000
Cutting Precision (mm)				± 0.5/1000
Roughness of Cut Surface				Ra12.5
Repeated Accuracy				±0.5
Main Pipe	Oxygen			P=1MPa
	Acetylene			P=0.1MPa
	Voltage			AC220V±10%
	Frequency			50HZ
Total Power of Gas Cutting Machine (Kw)				1.5

Maintenance
1. Users are expected to regularly clean each and every part of CNC flame cutting machine, which includes components of CNC control box, power source box, and so on.
2. The gear, gear box, rack and rail should be oiled and cleaned periodically.
3. The scraps filter needs dismantling and cleaning at regular intervals

Since establishment, we have been committed to the production of CNC flame cutting machine, welding positioner, welding manipulator, and so forth. Our products have been acknowledged by CE. Customer oriented, our company consistently provides clients with various services, such as technical consulting, processing set-up, technical proposal, training, site instruction and free hoisting. What’s more, we also offer quick-wear parts to clients. For more information, please visit our website or call us directly.
