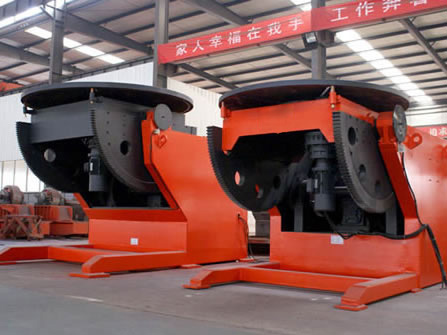

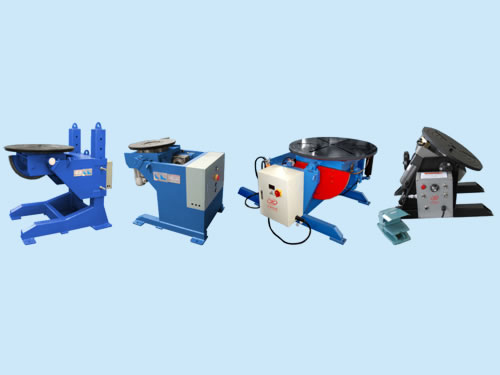

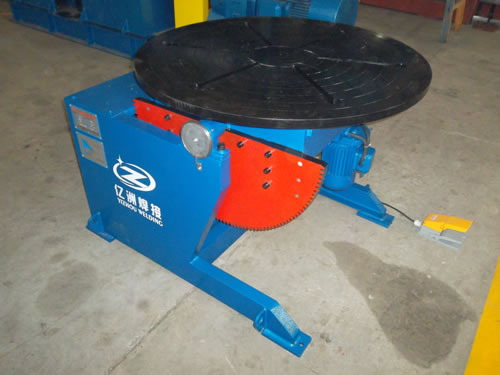

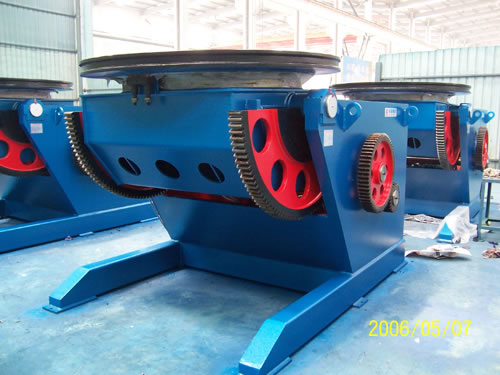

Standard Welding Positioner

Introduction
Standard welding positioner is able to meet the requirements of all kinds of work-pieces. It is made up of worktable rotation mechanism, overturning mechanism and electronic control system. The work-piece can be welded or assembled through the overturning and rotating of the worktable. For the sake of eccentric moment and distance of centre of gravity, large model of weld positioner should be chosen. Our company will offer suitable scheme for reference after clients provides the shape, weight and processing technology of work-piece.

Features
1. Standard welding positioner enjoys features of high rotation precision, low noise, excellent brake performance and stability.
2. This benchtop weld positioner adopts frequency conversion stepless speed control to regulate the worktable, so that it can rotate in a stable way.
3. The rated carrying capacity can reach 40,000 kg (YHB-400).
4. Standard welding positioner uses worm reduction transmission for worktable rotation. It can rotate at constant speed within the angle range of 120° and the rotating torque is large.
5. There are various rotation methods for you to choose, including the tipping type, end-to-end rotation type, end-to-end elevation rotation type, end-to-end tilting type, double rotation type, etc.

Parameters of Standard Welding Positioner

Model	YHB-01	YHB-03	YHB-06	YHB-12	YHB-30	YHB-50	YHB-100	YHB-150		YHB-200	YHB-300		YHB-400
Rated Capacity (Kg)	100	300	600	1200	3000	5000	10000	15000		20000	30000		40000
Rotating Speed (rpm)	0.3-3	0.2-2	0.09-0.9	0.09-0.9	0.05-0.5	0.05-0.5	0.02-0.3	0.03-0.3		0.03-0.3	0.08-0.2		0.08-0.2
Overturning Speed (rpm)	By hand	By hand	1.1	0.67	0.23	0.14	0.14	0.14		0.14	0.1		0.1
Overturning Angle (°)	0-90	0-90	0-90	0-90	0-120	0-120	0-120	0-120	0-120		0-135			0-135
Bench Scale (mm)	Φ400	Φ600	Φ1000	Φ1200	Φ1400	Φ1500	Φ2000	Φ2000	Φ2200		Φ4500			Φ6500
Rotary Motor Power (Kw)	0.12	0.18	0.75	1.1	1.5	2.2	3	4	5.5		7.5			11
Overturning Motor Power (Kw)	/	/	0.75	1.1	1.5	3	5.5	5.5	7.5		2 * 5.5			2 * 7.5
Speed Control Mode	Frequency Conversion Stepless Speed Control
Max. Eccentric Moment (mm)	100	100	100	150	200	300	400	200		200		250			300
Max. Distance of Centre of Gravity (mm)	100	100	100	100	150	200	250	500		600		1000			1200
Max. Rotating Diameter (mm)	Φ600	Φ800	Φ1500	Φ2050	Φ2100	Φ2500	Φ3240	/		/		/			/

We have been engaging in making standard welding positioner for about five years. In addition to that, we also supply shot blasting machine, welding manipulator, welding machine, H beam production line, straightening machine, welding turning roller, and so on. To better serve our clients, we strive to provide diverse services containing technical consulting, installation, debugging, on-site instruction and training. Our weld positioner is for sale now and welcome to visit our website.
