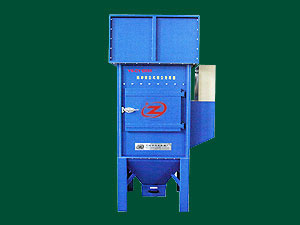

Welding Fume Extractor

Introduction
YS-CC(Y) impulse welding fume extractors are used to collect fume in welding and cutting treatments and collect dusts in milling and polishing treatments. They are environment-friendly, meeting demands of improving working conditions. HONJ is a professional China weld fume collector manufacturer. We apply strict standards in production of welding fume collectors.

Features
1. Core filters of YS-CC(Y) welding fume extractors are made from anti-flaming macromolecule materials. Besides, anion-exchange purifiers are applied to optimize fume extraction.

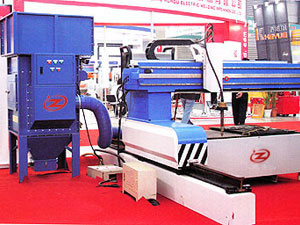

2. We provide multiple fume extractors which are available in various applications, including fume collection in plasma cutting machines, central fume extraction in welding workshops, dedusting system in large-scale workshops, etc.

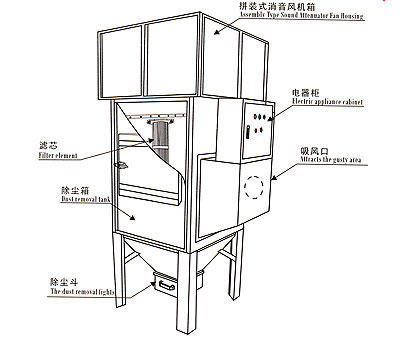

Structure Diagram

Parameters of Welding Fume Extractors

Model No.	YS-CY12035
Air Rate	800 m³/h
Working Voltage	AC380 V / 220 V
Interface Diameter of Air Horse	ф175
Filter Cartridge Size	ф150 × 900
Import Air Source	≥ 0.15 m³/min ≤ 0.8 MPa
Quantity of Filter Cartridge	5
Total Pressure	≤ 3580 Pa
Impulse Controlling Way	Automatic Timing Control
Interface of Air Source	ф8 PU Straight Tube
Machine Dimension	980 × 1000 × 2150
Machine Weight

Welding fume extractors manufactured by HONJ are widely sold at home and abroad. Our foreign clients are from America, Canada, Russia, Italy, Australia, New Zealand, Malaysia, Indonesia, Japan, etc. HohJ is not only a professional China weld fume collector manufacturer, it is also manufacturer of many other welding equipments. Our products are widely utilized in power stations, ship manufacturing, structural steel constructions, petrochemical engineering, and so on.
