Suspended Flux Recovery Unit

Introduction
YS-GHS suspended flux recovery unit is one of the most mature products manufactured by us since 2006. It applies durable suspended automatic valve whose seal ring is convenient to change. Even if this valve is stocked, it will not be damaged. As professional Chinese solder recycling device manufacturer, HONJ offers various machine types for choices. YS-GHS-AR2 and YS-SR machines are equipped with solder attemperators which are automatically controlled by intelligent temperature controllers. Besides, YS-GHS-A2 and YS-GHS-AR2 suspension type flux recovery units can apply YS-KC04 air dryers if working places are humid. Comprehensively, YS-GHS suspended flux recovery unit is greatly improved in conveying, operation and reliability.

Parameters of Solder Recycling Device

Model GHS-A(R)2-80 GHS-A(R)2-100 GHS-A(R)2-150
Working Voltage 380 V/50 HZ
Motor Power 1.5 kw/2P 2.2 kw/3P 3 kw/4P
Working Negative Pressure  -0.012 Mpa to -0.035 MPa
Recovery Distance (m) 4-16
Recovery Speed (Kg/min) 6-12
Solder Capability (Kg) 80
Bleed Pressure (MPa) 0.4-0.8
Conveying Distance (m) 8-16
Machine Weight (Kg) 150
Machine Dimension (mm) 1020 × 500 × 1500
Heating Power (Kw) 2

Pictures
1. Fully Automatic Suspended Flux Recovery Unit
Following pictures are YS-GHS-A2 automatically continuous feeding suspended flux recovery units which are composed of main machines and YS-S(R) solder supplementary conveyors. They are available for large-size steels and welding procedure which requires continuously long-time solder recovery.

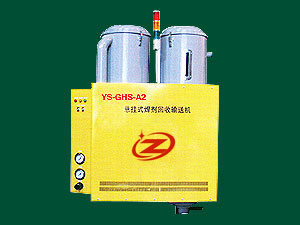

  • YS-GHS-A2

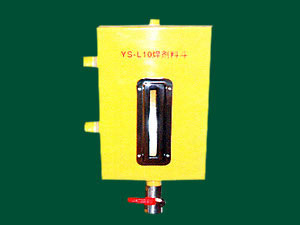

  • YS-L

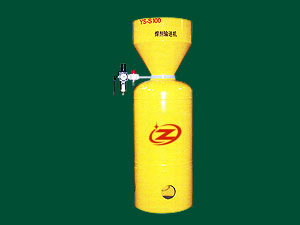

  • YS-S

2. General Suspended Flux Recovery Unit
YS-GHS-B general suspended flux recovery units apply rubber buttlefly valves and cylinder driving systems as main valve bodies. Seal rings are made from general rubber, so, if solders are stocked, valve bodies may be damaged. Then, valve bodies should be changed into new ones. These seal rings are not available for heating-type machines. Following pictures show how YS-GHS-B is connected. YS-GHS-B is the same to GHS-A1 in appearance, installation method and applications. Besides, alert controller for solder recovery level can be installed if needed.

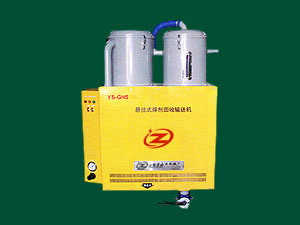

  • YS-GHS-B
  • YS-L

Parameters of Suspended Flux Recovery Unit

Model No. GHS-A-80-B GHS-A-100-B GHS-A-150-B
Working Voltage 380 V/50HZ
Motor Power 1.5 kw/2P 2.2 kw/3P 3 kw/4P
Working Negative Pressure -0.012 Mpa to-0.035 MPa
Recovery Distance (m) 4-16
Recovery Speed (Kg/min) 6-12
Solder Capability (Kg) 80
Bleed Pressure (MPa) 0.4-0.8
Conveying Distance (m) 8-16
Machine Weight (Kg) 150
Machine Dimension (mm) 1020 × 500 × 1500
