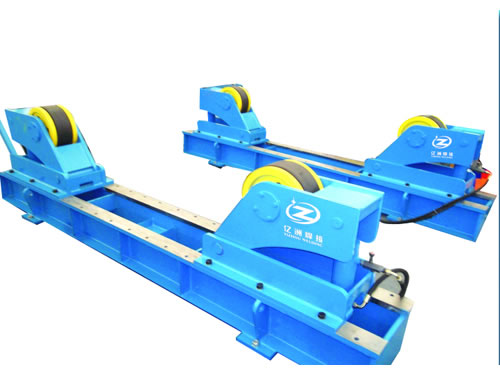

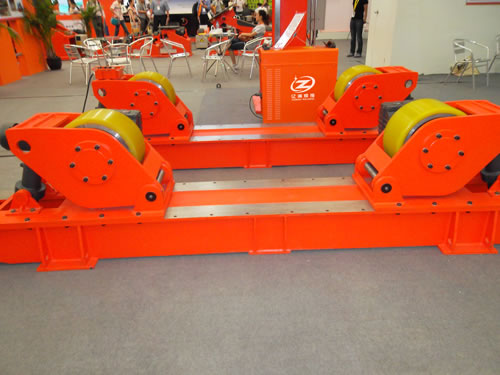

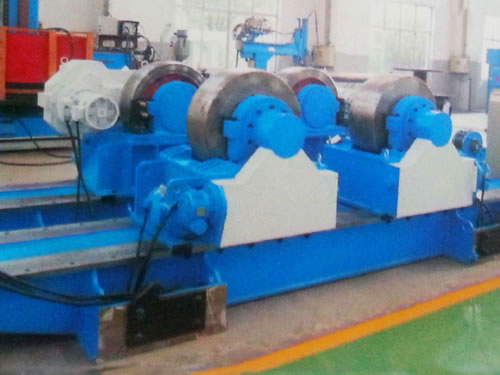

Fit-up Welding Rotator

Fit-up Welding Rotator

Introduction
The fit-up welding rotator is mainly employed to weld long pipes, such as wind tower. Such welding turning roller uses four independent rollers for assemblage. It is usually used with passive roller. The maximum load capacity varies from model to model (3t to 650t). It adopts AC variable frequency stepless regulation or electromagnetic regulation.

We are a professional welding turning roller manufacturer in China. We generally supply fit-up welding rotator, CNC cutting machine, box beam production line, H beam production line, welding manipulator, welding positioner, milling machine, and so on. For the clients, we offer a series of services, including technical consulting, training, installation, debugging, on-site instruction, etc. If you have interest in our product, we warmly welcome your inquiry.

Parameters of Fit-up Welding Rotator

Model Max. Load Capacity (T) Diameter of Cylinder (mm) Roller Size (D*W)(mm) Liner Speed (m/h) Power (Kw) Mode of Speed Adjustment
Rubber Metal
YZK-3 3  250-1800  200 × 100 2 × 194 × 20 6-60 2 × 0.25 AC Variable Frequency Stepless Regulation or Electromagnetic Regulation
YZK-5 5  250-2300  250 × 100 2 × 240 × 20 6-60 2 × 0.37
YZK-10 10  320-2800  300 × 120 2 × 290 × 25 6-60 2 × 0.55
YZK-20 20  500-3500  350 × 120 2 × 340 × 30 6-60 2 × 1.1
YZK-30 30  600-4000  350 × 120 2 × 340 × 30 6-60 2 × 1.1
YZK-40 40  600-4200  400 × 120 2 × 390 × 40 6-60 2 × 1.5
YZK-50 50  750-4500  400 × 120 2 × 390 × 40 6-60 2×2.2
YZK-60 60   750-4800  450 × 120 2 × 440 × 50 6-60 2 × 2.2
YZK-80 80  850-5000  500 × 120 2 × 490 × 60 6-60 2 × 3
YZK-100 100  1000-5500  500 × 120 2 × 490 × 70 6-60 2 × 3
YZK-160 160  1100-6000 /  620 × 220 6-60 2 × 4
YZK-250 250  1200-7000 /  700 × 280 6-60 2 × 5.5
YZK-400 400  1300-7500 /  850 × 350 6-60 2 × 7.5
YZK-630 650  1400-8500 /  900 × 400 6-60 2 × 11
