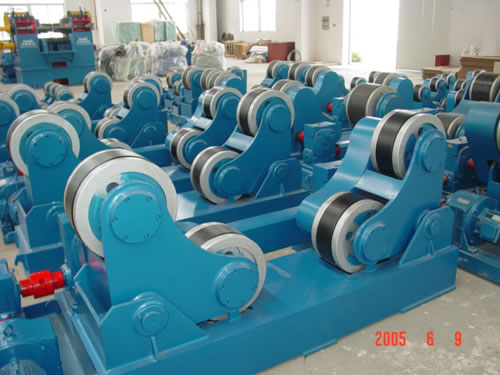

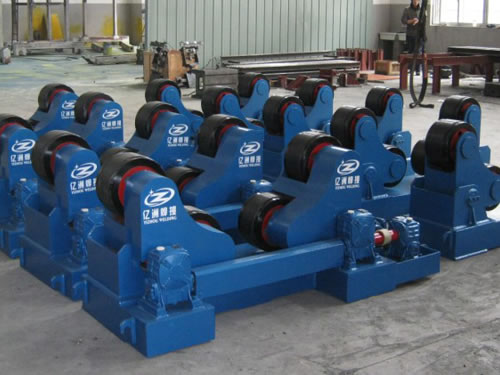

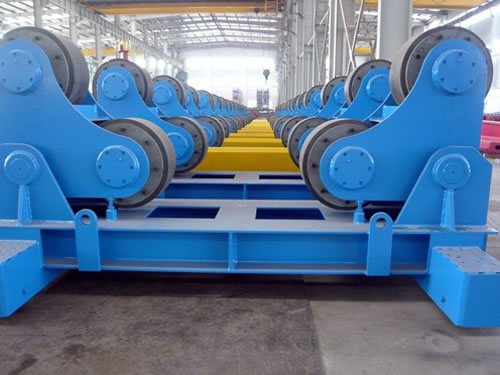

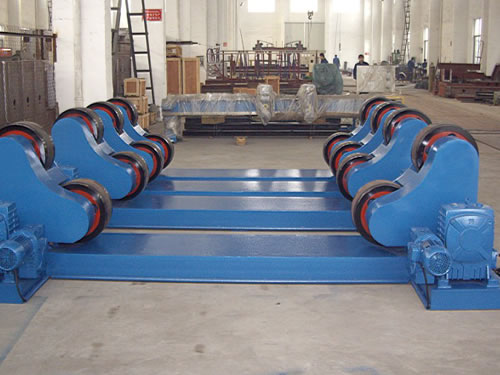

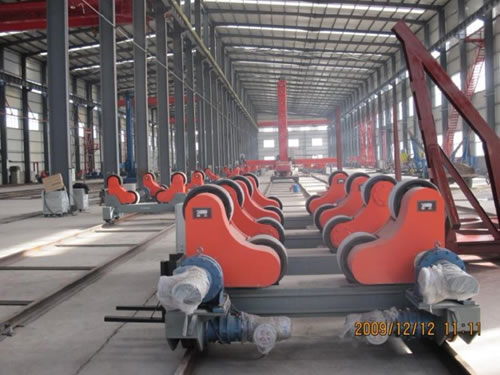

Self-Aligning Welding Rotator

Self-Aligning Welding Rotator

Introduction

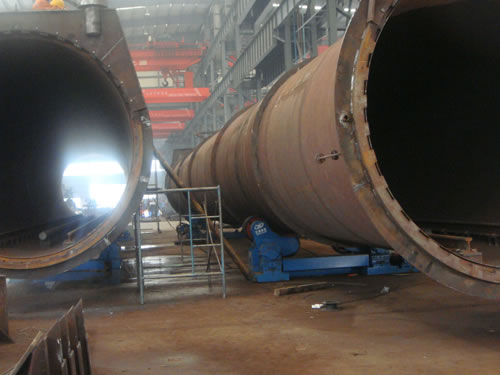

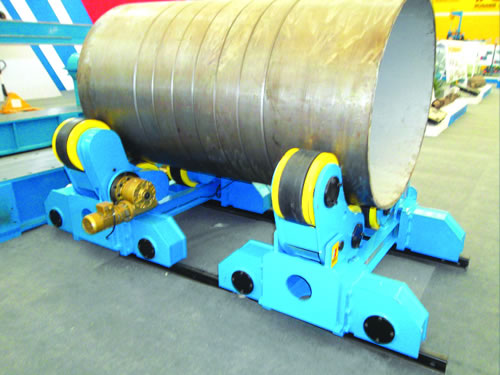

This series of self-aligning welding rotator is suitable for automatic welding of circumferential and longitudinal seam of metal cylinder when matched with YZH welding machine. On the other hand, this welding turning roll can also provide help to manual welding. Besides, it helps to test and assembly cylinders. It drives clamp holder to automatically modulate barycentre by taking advantage of welding piece weight. Thus, self-aligning welding rotator can meet the welding needs of various specifications of work pieces.

Features
1. Self-aligning welding rotator can automatically align pivot angle.
2. Imported frequency control enables a wide range of regulation, large starting torque and high regulating precision.

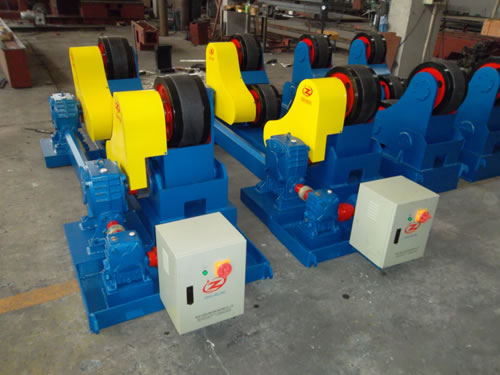

3. With manual control box, welding turning roll can make remote control achieved.
4. Steel roller is adopted for large tonnage, which features big load capacity and strong drive ability.

Specification of Self-Aligning Welding Rotator

Model Max. Load Capacity (T) Suitable Diameter of Workpiece (mm) Roller Diameter and Width (mm) Liner Speed (m/h) Power (Kw) Mode of Speed Adjustment
Rubber Metal
YZG-5 5 250-2300 250 × 100 2 × 240 × 20 6-60 0.75 AC Variable Frequency Stepless Regulation or Electromagnetic Regulation
YZG-10 10 320-2800 300 × 120 2 × 290 × 25 6-60 1.5
YZG-20 20 500-3500 350 × 120 2 × 340 × 30 6-60 1.5
YZG-40 40 600-4200 400 × 120 2 × 390 ×40 6-60 3
YZG-60 60 750-4800 450 × 120 2 × 440 × 50 6-60 4
YZG-80 80 850-5000 500 × 120 2 × 490 × 60 6-60 4
YZG-100 100 1000-5500 500 × 120 2 × 490 × 70 6-60 5.5
YZG-150 150 1100-6000 — 600 × 280 6-60 7.5
YZG-250 250 1200-7000 — 700 × 300 6-60 2 × 5.5
YZG-500 500 1800-8000 — 850 × 350 6-60 2 × 7.5

With about five years of manufacturing experience, WUXI HONJ MATERIAL CO., LTD. is a professional manufacturer of self-aligning welding rotator. Our products have been exported to over 30 countries and regions, including the USA, Canada, Russia, Italy, Australia, New Zealand, Japan, India, Singapore, Malaysia, Indonesia, Iran, Brazil, UAE, etc. Furthermore, we have won CE certification and Product Patent certificate. If you want to know more about welding turning roll, do not hesitate to visit our website or contact us directly.
