Steel Plate Shot Blasting Machine

Steel Plate Shot Blasting Machine

Introduction

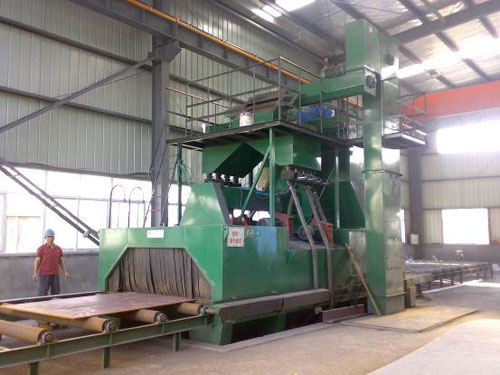

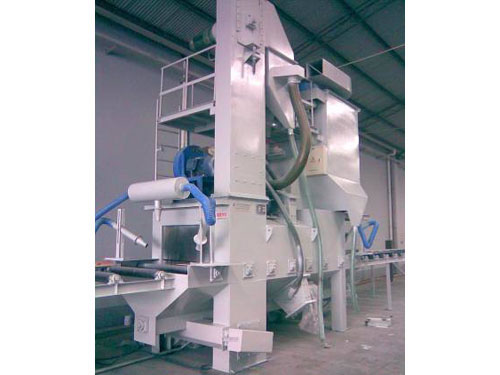

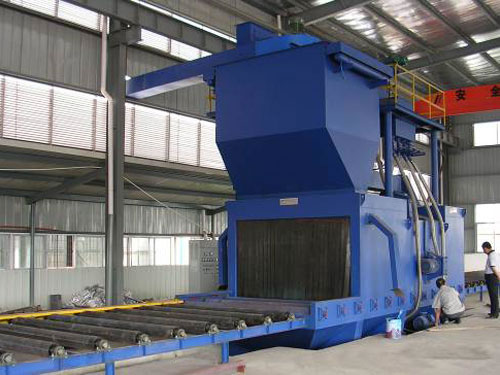

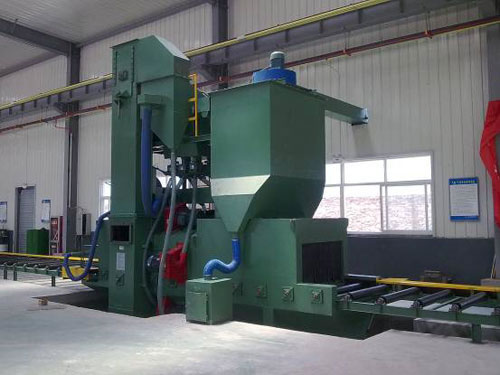

JPG steel plate shot blasting machines are specially designed for pre-treatment of steel plates and structural components, also for post-treatment of steel structural members. These small shot blasting machines are featured by high efficiency, high quality, good adaptability to steel castings, low processing costs, etc. Besides, top-install cartridge filters and advanced shot-sand separators are equipped to make steel plate shot blasting machines work stably. JPG shot blasting machines are suitable for medium-size and small-size machinery manufacturers.

Shanghai TallKee is a subsidiary company to Shanghai. We are dedicated in manufacturing automatic welding machines, computer numerical controlling cutting machines, facing machines, small shot blasting machines, and so on. We have absorbed abundant advanced technologies from abroad. Our JPG steel plate shot blasting machines are exported to many countries, including America, Canada, Russia, Iran, New Zealand, Japan, Singapore, Malaysia, Brazil, and so on.

Parameters

Specifications Unit JPG126 JPG228 JPG258 JPG258 JPG308 JPG358
Cleaning Way   By Air Manually Manually Automatically Automatically Automatically
Cleaning Width mm 1200 2200 2500 2500 3000 3500
Feed Inlet Size mm 1350 × 650 2350 × 850 2650 × 850 2650 × 850 3200 × 850 3700 × 850
Length of Steel Castings mm 1500-12000 2400-15000 2400-15000 2400-15000 1900-20000 1900-20000
Speed of Roller Way (Step-Less, Frequency-Convertible) m/min 0.4-5.5 0.5-5.2 0.5-5.2 0.5-5.2 0.4-4.5 0.4-4.5
Thickness of Steel Plates mm 5-50 5-60 5-60 5-60 5-120 5-160
Shot Quantity Kg/min 4 × 180 8 × 180 8 × 250 8 × 250 9 × 280 10 × 280
Initial Loading Quantity of Shot Kg 3000 5000 6000 6000 7000 7500
Adjustable Height of Roller Brushes mm       800 800 800
Air Rate m³/h 8500 13500 16500 16500 22000 25000
Machine Dimension mm 21120 × 2600 × 5500 28330 × 4100 × 7950 29586 × 4500 × 8000 29586 × 4500  × 8000 34684 × 4970 × 8800 34960 × 5850  × 8800
Total Power Kw 75 126.4 131.9 157.95 222.55 233.55
