H-Beam Automatic Welding Machine

Introduction

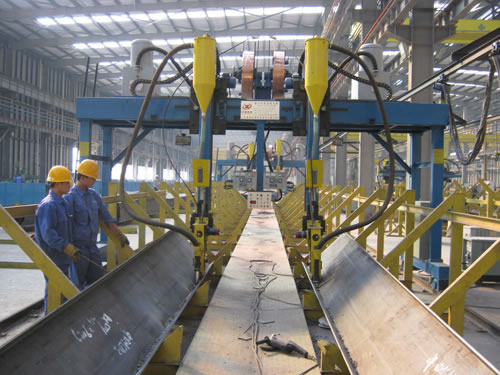

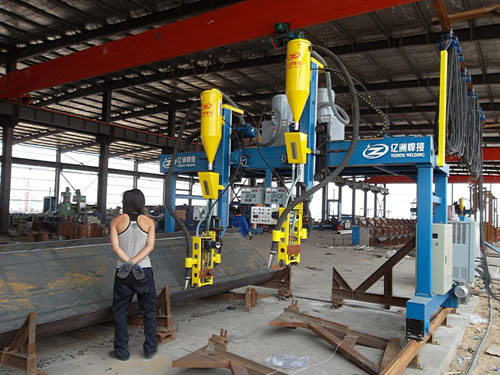

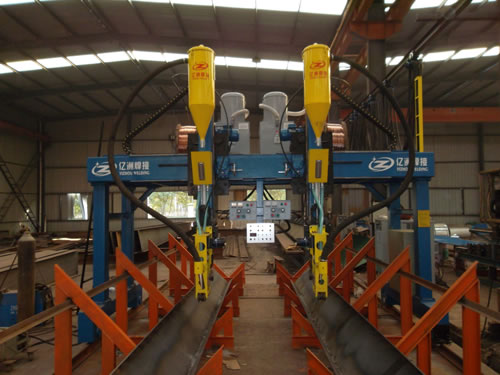

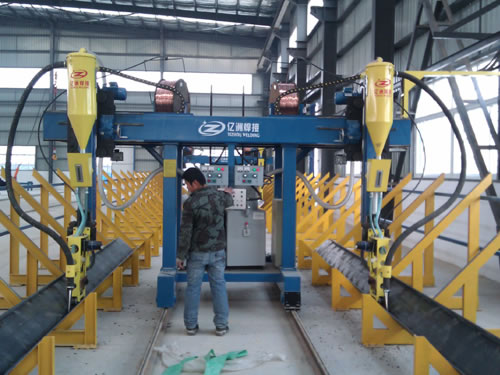

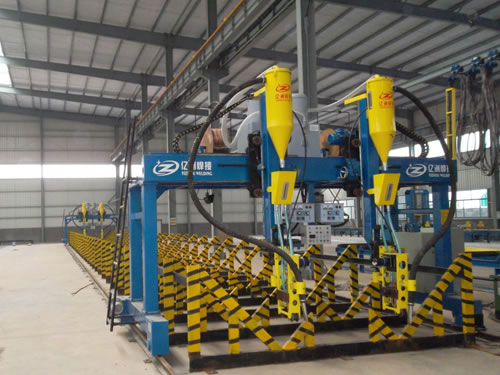

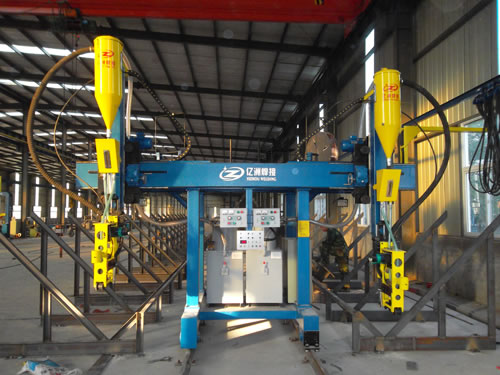

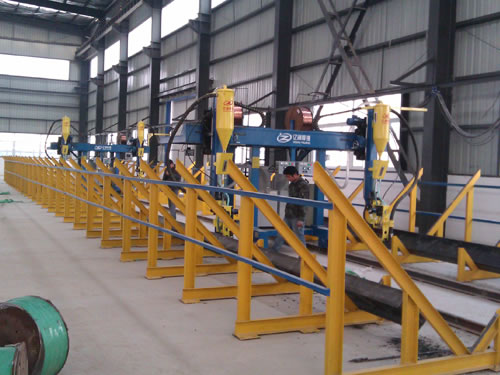

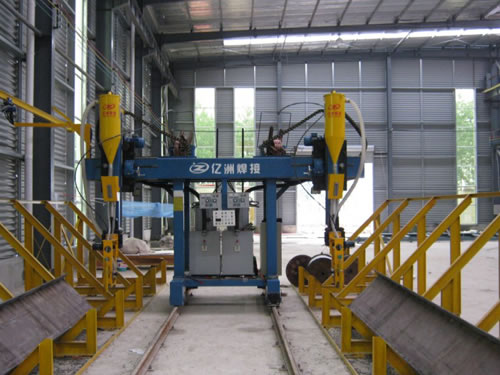

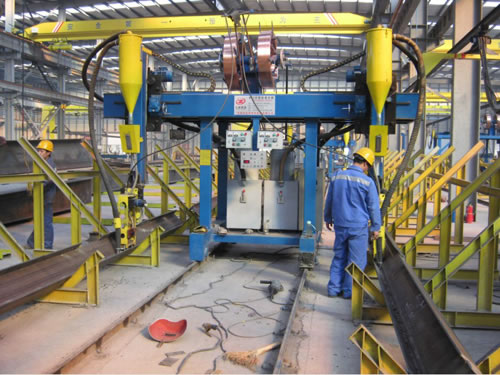

Considering the particularity of fillet welding in the flat position, H-beam automatic welding machine is designed and manufactured. Gantry welding machine is structured by a gantry, sliding plate, torch mechanical tracking system, flux recycling system, submerged arc welder and electric apparatus control system. Of them, the gantry is the frame and its intensity has been calculated in detail. As the welding arm uses motor reducer and rack and pinion mechanism, our H beam automatic welding machine is adapted for different models of H beam welding.

Features
1. H beam automatic welding machine has the function of back and forth welding, which greatly improves working efficiency.
2. It employs three axis mechanical tracking and rotating floating tracking to ensure accurate location of welding torch.
3. With adopting of dovetail groove wheel, the welding arm of gantry welding machine can slide stably.
4. Main components are reliable and can be used for a long time after being destressing processed.

Parameters

Model	YZA H Beam Automatic Welding Machine	YZT
Web Plate Height (mm)	200-1200	200-2000
Flange Plate Height (mm)	200-800	200-800
H-Beam Length (mm)	4000-15000	4000-15000
Model of Welding Machine	2 Units of 1000 type Automatic Submerged Arc Welder	2 Units of 1000 type Automatic Submerged Arc Welder
Welding Form	Fillet Welding in the Flat Position	Fillet Welding in the Flat Position
Speed (m/min)	0.15-2.5	0.15-2.5
Track Space (mm)	4000/5000	1400/2000
Power (Kw)	13(Excluding Welding Machine Power )	13(Excluding Welding Machine Power)

Maintenance
1. Timely adjust the space between guide rail and roller of H beam automatic welding machine.
2. Regularly clear up the blockage on the screen of flux recovery device.
3. Do not stack sundries at the sides of rail so as to ensure the gantry can move smoothly.

Shanghai TallKee Company is a professional supplier of gantry welding machine, plasma cutting machine, welding manipulator, welding turning roll, etc. Our products have passed the certification of CE and also won Product Patent certificate. Many a product enters overseas markets, including the USA, Canada, Russia, Italy, Japan, Australia, New Zealand, India, Brazil, Malaysia, Indonesia, Iran, UAE, and so much so forth. We are looking forward to your visit and consulting for details about H beam automatic welding machine.
