Hydraulic Elevating Welding Positioner

Hydraulic Elevating Welding Positioner

Introduction

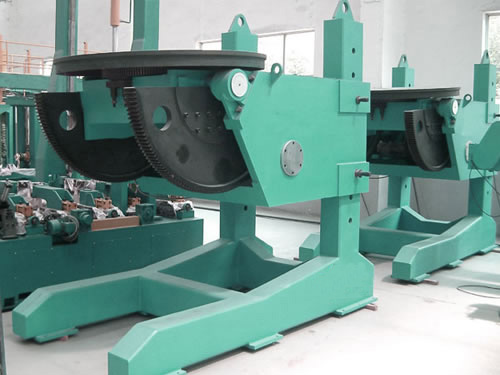

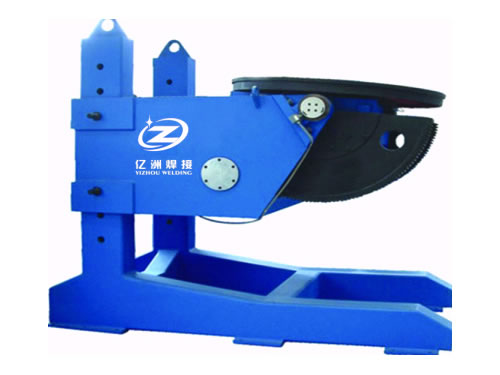

Hydraulic elevating welding positoner can adjust worktable height through changing plug position. With good dynamic brake, it can stop immediately. This hydraulic welding positioner is armed with anti-interference electronic control system to achieve remote control. Besides, the protractor can show the angles clearly. Fully enclosed speed control mechanism realizes stepless control. The tilting angle of hydraulic elevating welding positioner can reach 135°.

Affiliated to Yizhou Welding Equipment Co., Ltd., TallKee MATERIAL Corporation specializes in making automatic welding equipment including hydraulic elevating welding positioner in China. Based on foreign advanced technology, we researched and has manufactured CNC cutting machine, welding machine, etc. Our products are widely applied in petrochemical, power station, heavy machinery, structural steel and shipbuilding industries. Some products have reached overseas standard. For more information about hydraulic welding positioner, please call us directly or visit our website.

Parameters of Hydraulic Elevating Welding Positioner

Model YHB-10 YHB-20 YHB-40 YHB-60 YHB-80 YHB-100 YHB-150 YHB-200
Rated Capacity (Kg) 1000 2000 4000 6000 8000 10000 15000 20000
Rotating Speed (rpm) 0.12-1.2 0.05-0.5 0.05-0.5 0.05-0.5 0.05-0.5 0.05-0.5 0.05-0.5 0.05-0.5
Overturning Speed (rpm) 0.29 0.25 0.2 0.2 0.14 0.14 0.14 0.14
Overturning Angle (°) 0-135 0-135 0-120 0-120 0-120 0-120 0-120 0-120
Bench Scale (mm) Φ 900 Φ1200 Φ1400 Φ1500 Φ1600 Φ1800 Φ2000 Φ2200
Rotary Motor Power (Kw) 1.1 1.1 2.2 2.2 2.2 3 4 5.5
Overturning Motor Power (Kw) 1.1 1.5 2.2 3 4 4 5.5 7.5
Speed Control Mode Frequency Conversion Stepless Speed Control
Max. Eccentric Moment (mm) 150 150 150 120 200 200 200 200
Max. Distance of Centre of Gravity (mm) 350 350 350 350 400 630 630 630
Max. Rotating Diameter (mm) Φ900 Φ1200 Φ1400 Φ1500 Φ1600 Φ1800 Φ2000 Φ2200
